Vantage 30 Wa Sf Ir 4-16x50

Vantage 30 Wa Sf Ir 4-16x50

SKU:SHAWKE14295

Regular price R 7,150.00 ZAR
Regular price Sale price R 7,150.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

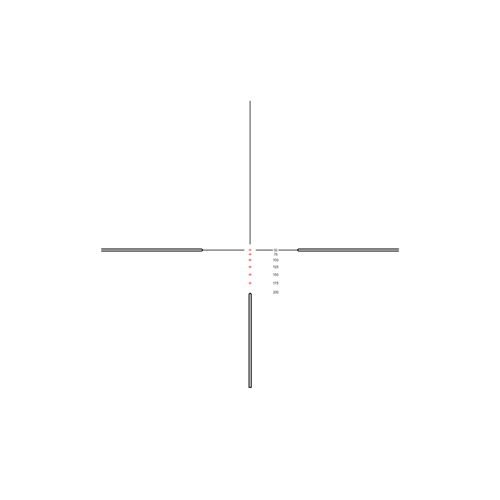

Rimfire .22 LR HV 16x Reticle

Registered reticle design exclusive to Hawke. Bullet Drop Compensating (BDC) aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.

Designed for .22 LR High Velocity. Zero on 16x magnification at 50 yards and the bullet drop compensating reticle provides accurate aim points in 25 yard increments out to 200 yards. Ideal for .22 LR ammunition between 36-40gr and approx. 1235-1260 fps (376-384 m/s). Can also be accurately calibrated for standard velocity and sub-sonic ammunition.

The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 13.9x.

Objective Lens
50mm
Reticle
Rimfire .22 LR HV (16x)
Parallax
Side Focus
Magnification
4 - 16x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels - Red/Green

Field of View
28.8 - 7.8ft @100yds
9.6 - 2.6m @100m
Field of View (°)
5.5 - 1.5
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.49 - 0.12″
12.5 - 3.1mm

Turret Type
Exposed
Turret Caps
N/A
Click Value
1 4MOA
Elevation Turret Clicks (max)
96 MOA
Windage Turret Clicks (max)
96 MOA

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers

Length
13.7in
347mm
Weight
26.1oz
740g
