Integrix Ix6 4.5-27x56 34mm Ffp Scope
Integrix Ix6 4.5-27x56 34mm Ffp Scope
SKU:UTGIV645FM1
Couldn't load pickup availability

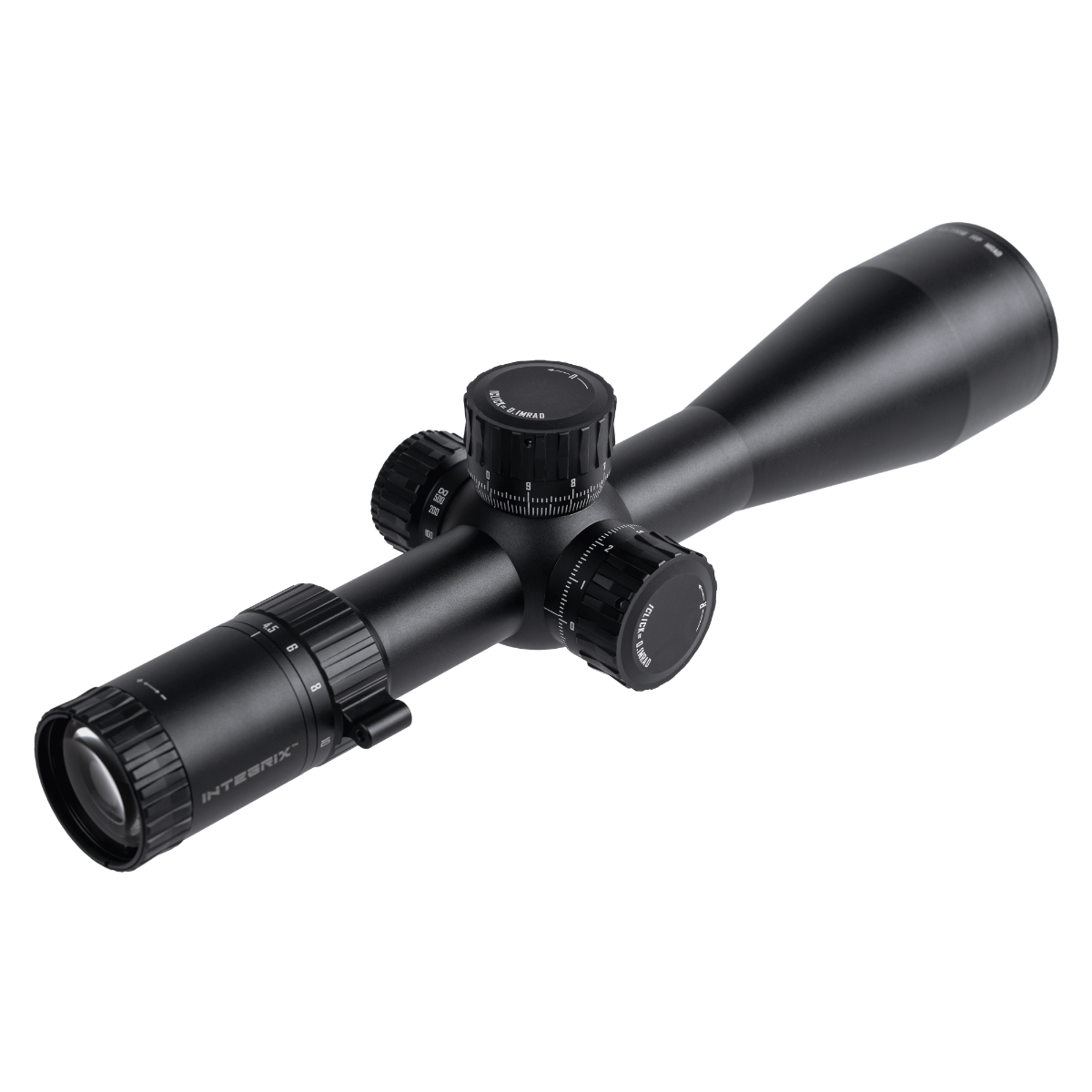

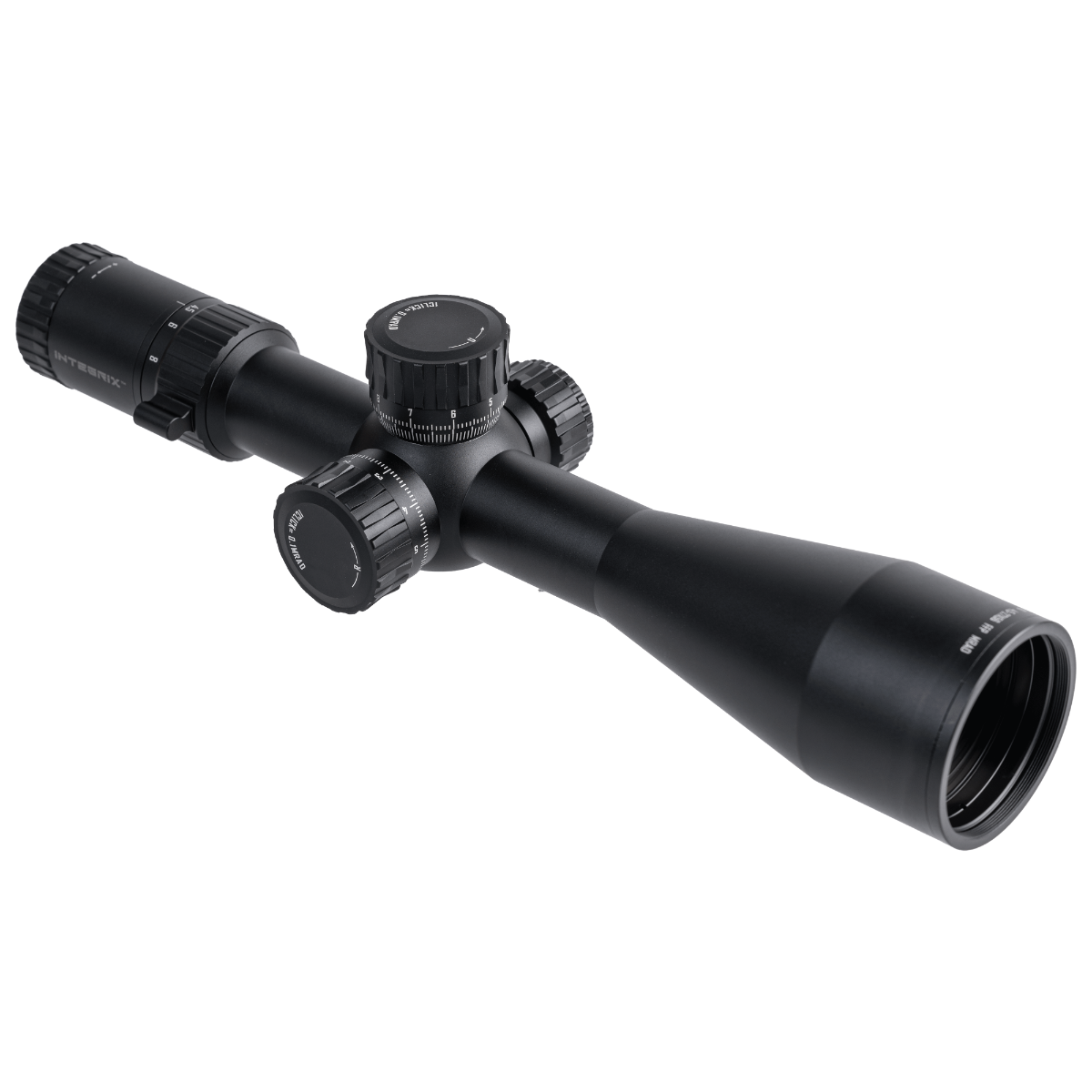

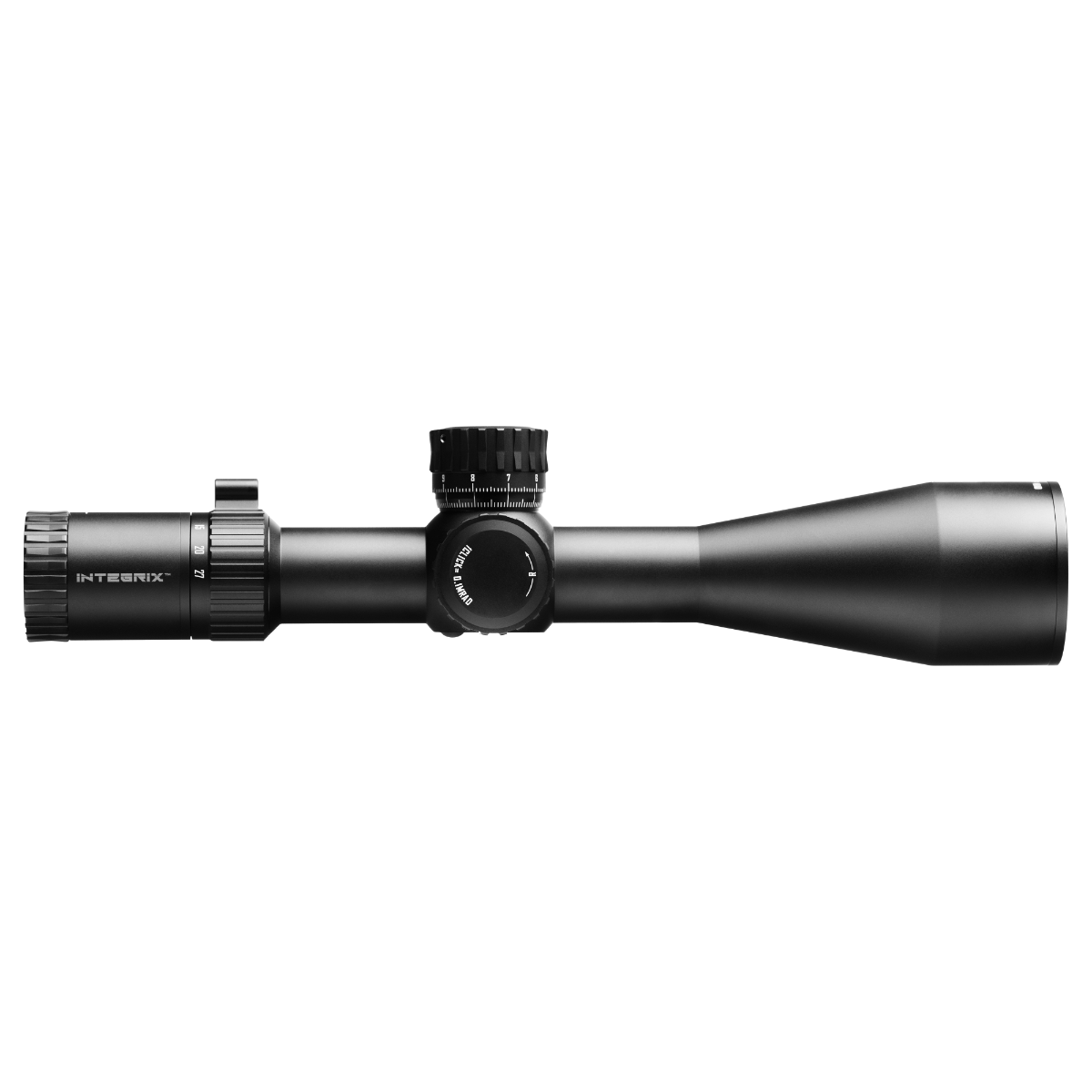

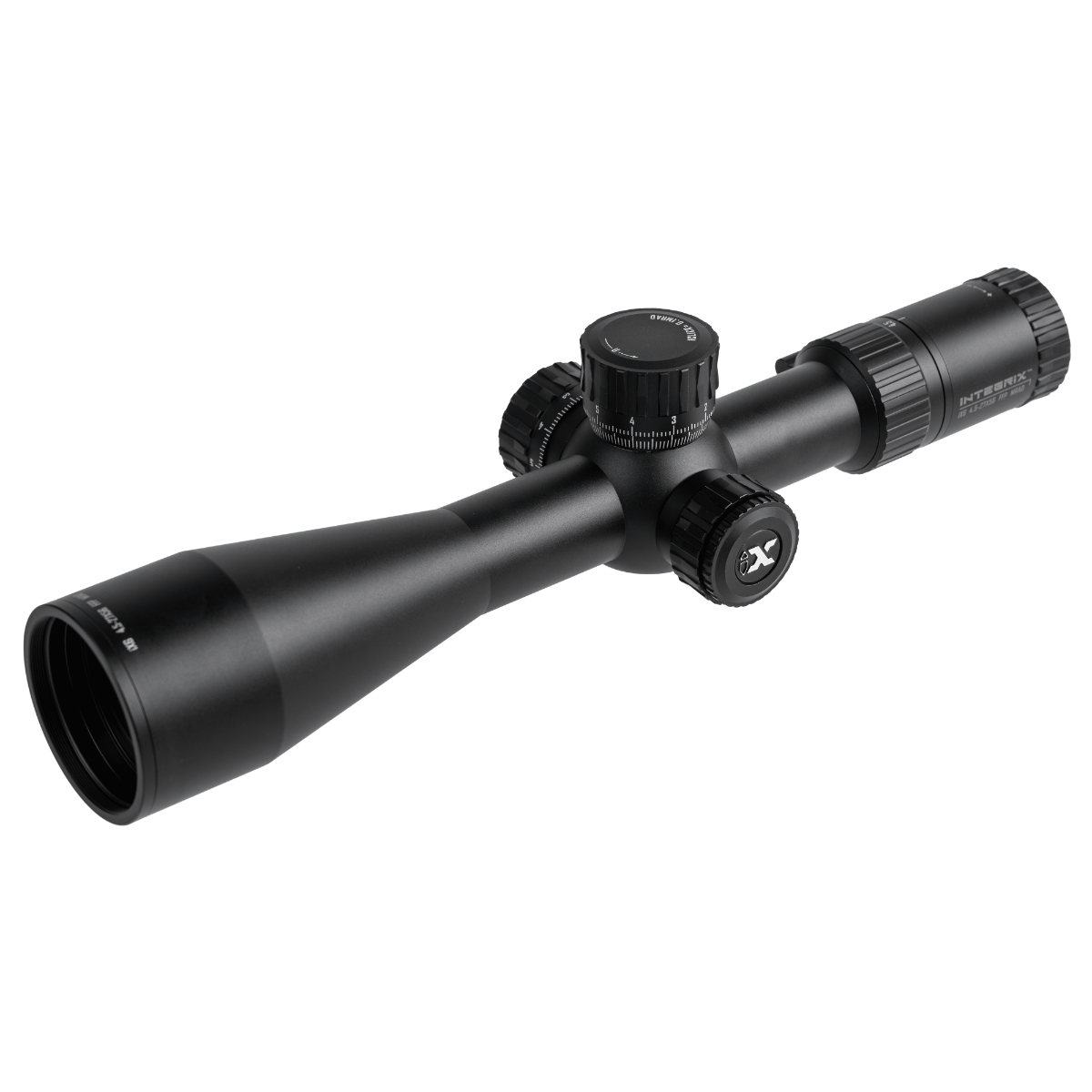

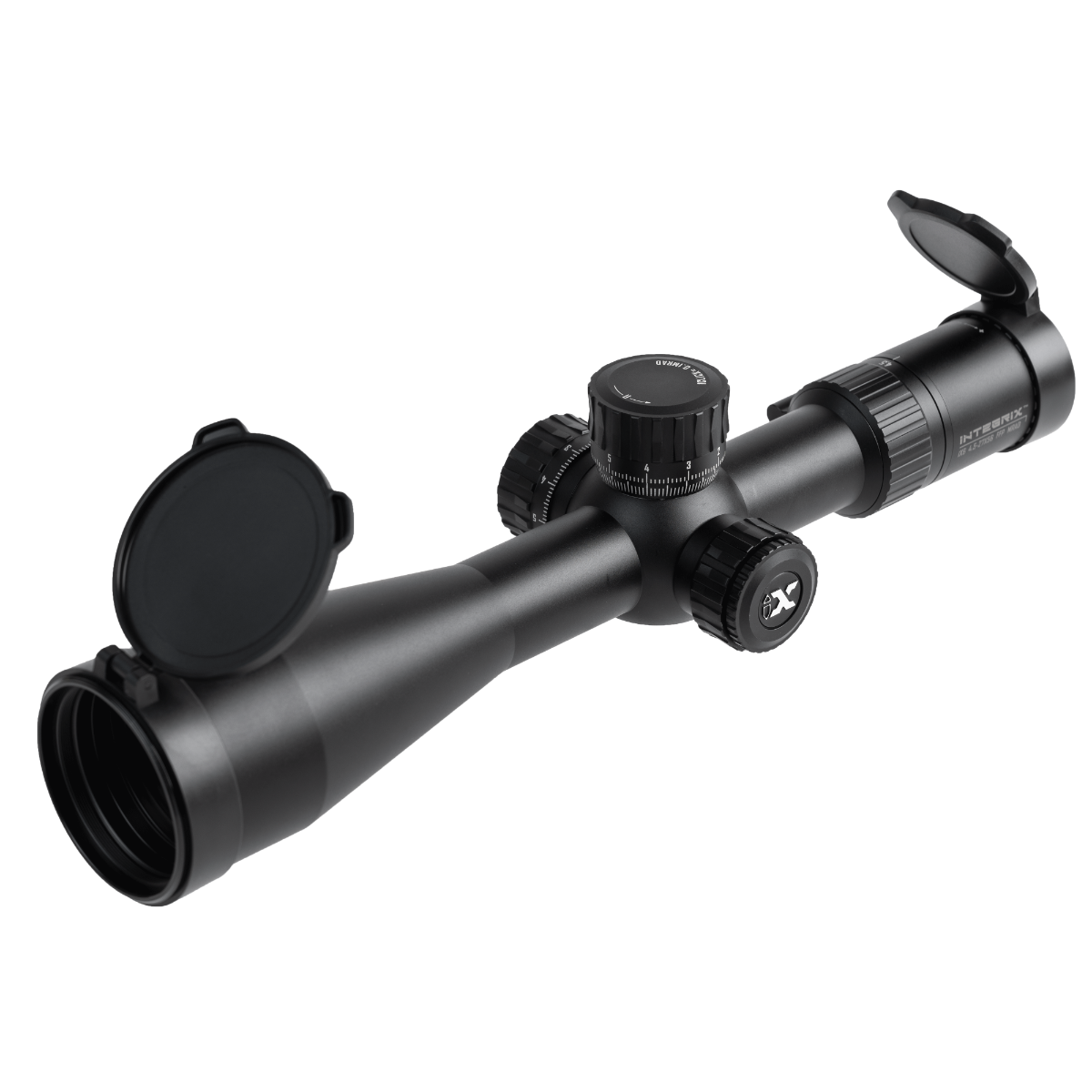

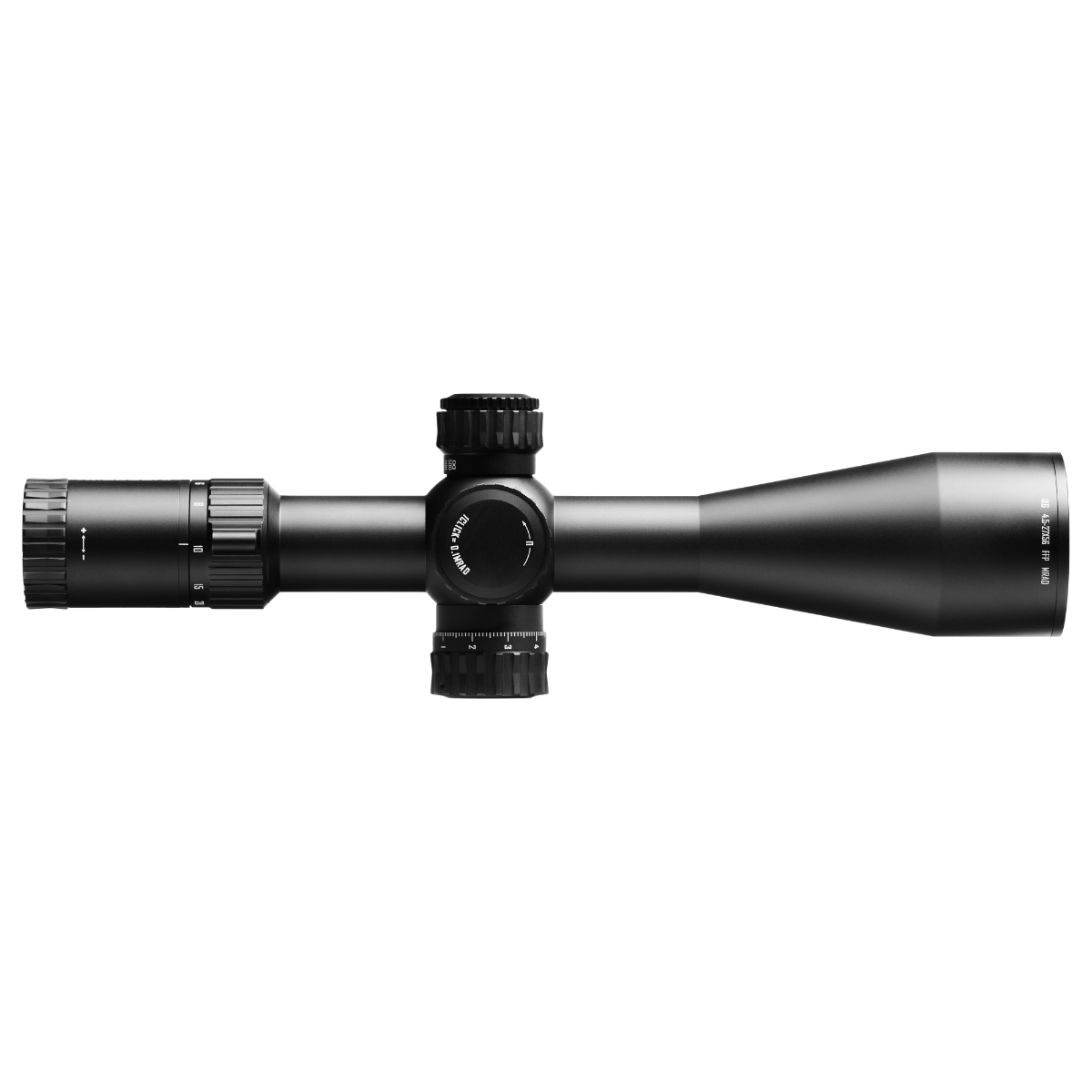

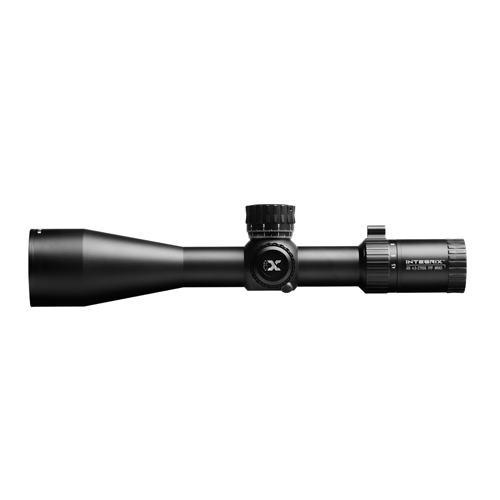

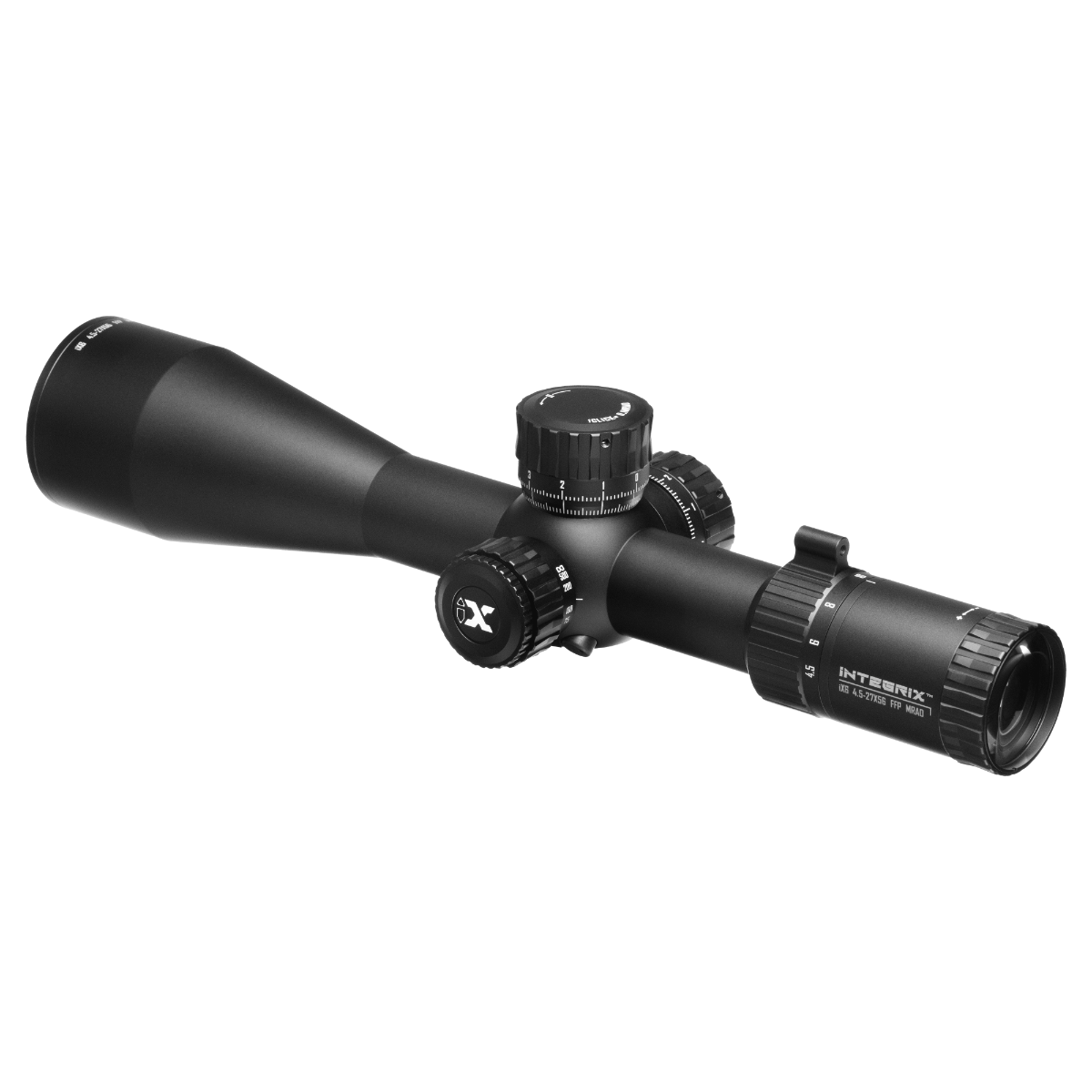

INTEGRIX® iX6 4.5-27X56 34mm FFP LR/ELR Scope, M1 MRAD
Dropping to dealers first quarter 2025, the INTEGRIX® iX6 4.5-27X56 modernizes the 5-25X magnification range to offer even greater versatility for long range engagements. Its large objective lens and 34mm tube allow for maximum light and clarity in low light conditions and travel in your windage and elevation adjustments. Available in 2 different precision reticle options, this riflescope is a well-rounded optic for the advanced long-range marksman.
https://www.leapers.com/products-integrix-ix645fm1.html
- Patented Mil precision reticle with quick ranging system and wind holds out to 12 Mils
- Individually centration tested German SCHOTT glass and Japanese OHARA
- Multi-coated lenses for glare, reflection, and scratch resistance
- Over 92% light transmission for maximum low light performance
- Edge-to-edge HD image quality, contrast, and resolution with minimized aberrations
- Extra wide 25 to 4 ft FOV at 100 yards (8.4 to 1.4 m at 100 m) with large consistent eyebox
- Durable and reliable environmental performance rated from -40°F (-40°C) to 160°F (71°C)
- 3x Nitrogen purged for fog and IPX7 waterproofing
- Rated for .338 LAPUA Magnum with life fire testing and collimator confirmation onsite
- Red and green reticle Illumination with 8 brightness intensities and 12 hour automatic shutoff

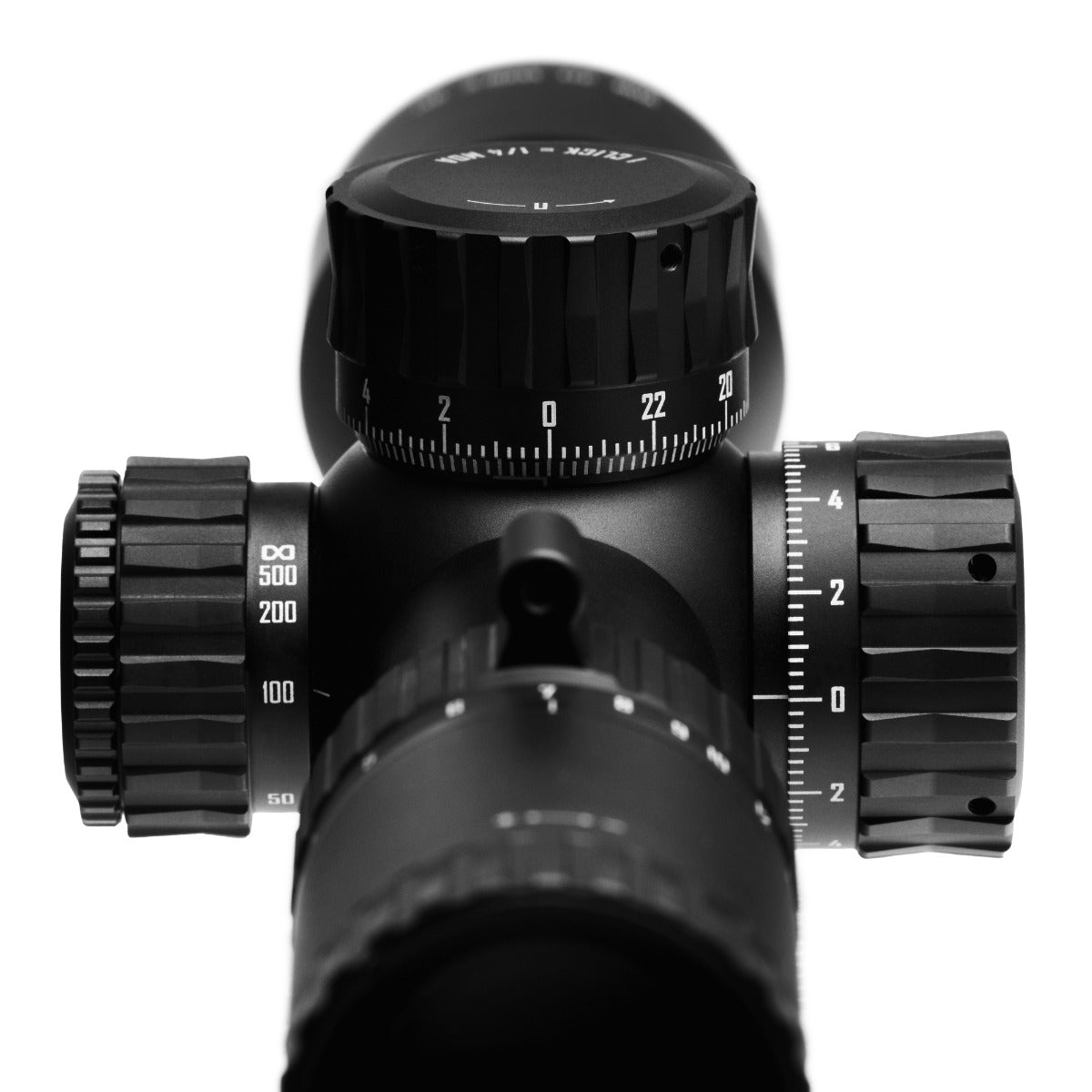

- Intuitive lockable and zero resettable windage and elevation turrets
- Elevation turret equipped with patented zero stop, simple and easy to set
- Side adjustable parallax turret for smooth adjustment from 30 yds / 27 m to infinity
- Ultra compact and lightweight combined with the expanded versatility of 6 power
- Serrated power ring and rear adjustable eyepiece

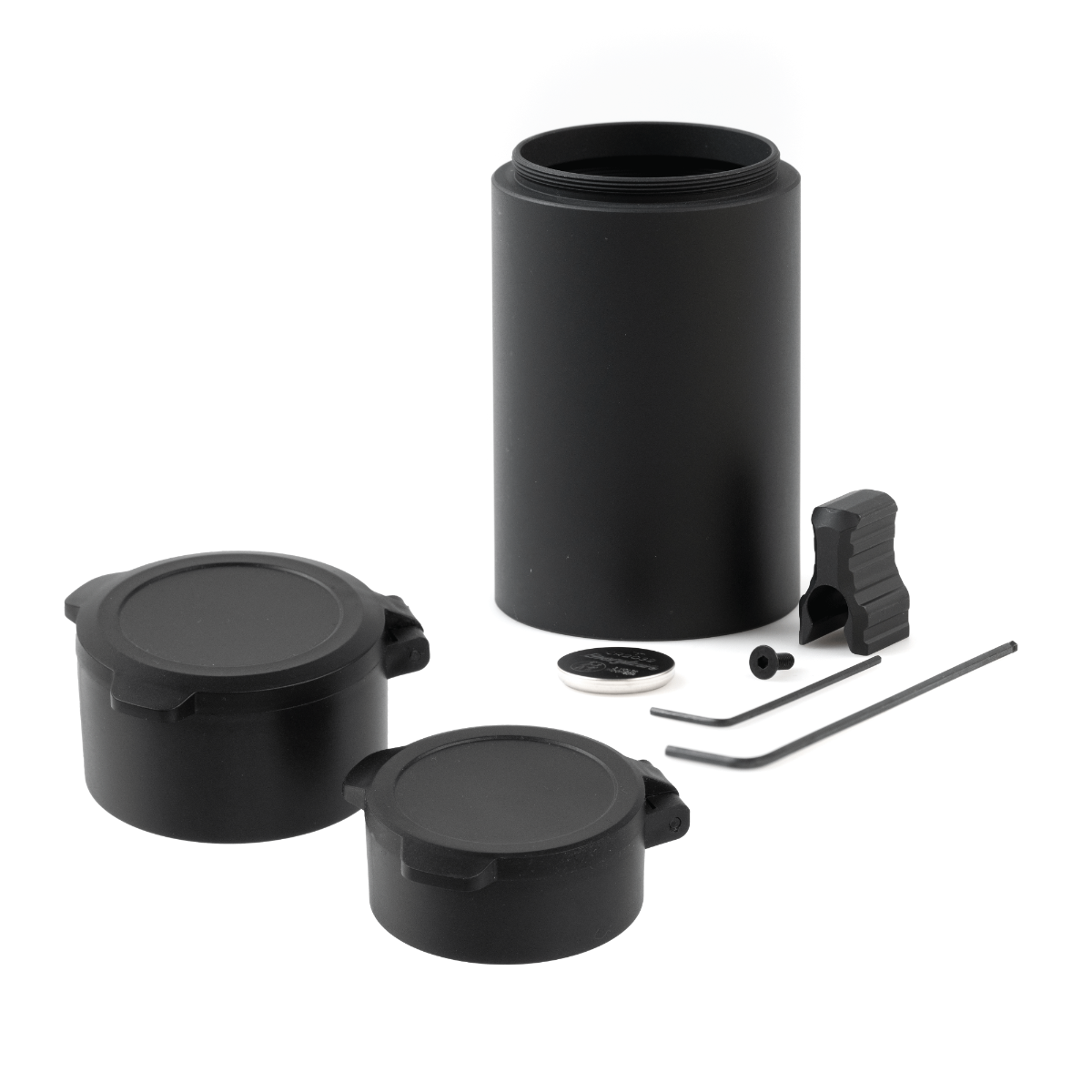

- Effortless magnification transitions with oversized throw lever included
| Auto Shutoff | 12 hrs |
|---|---|
| Ballistic Drop Compensation | No |
| Battery Loading | Left Side Turret |
| Battery Type | CR2032 3V |
| Brightness Mode(s) | Manual |
| Brightness Settings | 8 |
| Caliber Rating | .338 Lapua Magnum |
| Click Value | 0.1 MRAD |
| Diopter Adjustment | -3D to +2D |
| Diopter Type | Friction Secured |
| Elevation Travel | 32.5 MRAD (Up 19 MRAD / Down 13.5 MRAD) |
| Exit Pupil | 11 - 2.1 mm |
| Eye Relief | 3.94 in (100 mm) |
| Field of View (Angular FOV) | 4.8° - 0.8° |
| Field of View (Linear FOV) | 25.1- 4.2 ft @ 100 yds (8.4 - 1.4 m @ 100 m) |
| Focal Plane | FFP (First Focal Plane) |
| Illuminated | Yes |
| Light Transmission | 92% |
| Magnification Max. | 27X |
| Magnification Min. | 4.5X |
| Materials | 6061-T6 Aluminum |
| Parallax | 30 yds (27.4 m) - Infinity |
| Parallax Control | Left Side Adjustable Turret |
| Range Estimation | Yes |
| Reticle | M1 MRAD |
| Reticle Color | Red and Green |
| Reticle Type | Etched Glass |
| Surface Finish | Anodized |
| Temperature Operating Range | -40⁰F to +160⁰F (-40⁰C to +71⁰C) |
| Travel Per Revolution | 10 MRAD |
| Waterproof Rating | IPX7 |
| Weight | 33.7 oz (956 g) |
| Windage Travel | 14 MRAD |
| Zero Stop | No |
https://www.leapers.com/products-integrix-ix645fm1.html
LEAPERS® LIFETIME WARRANTY
Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.

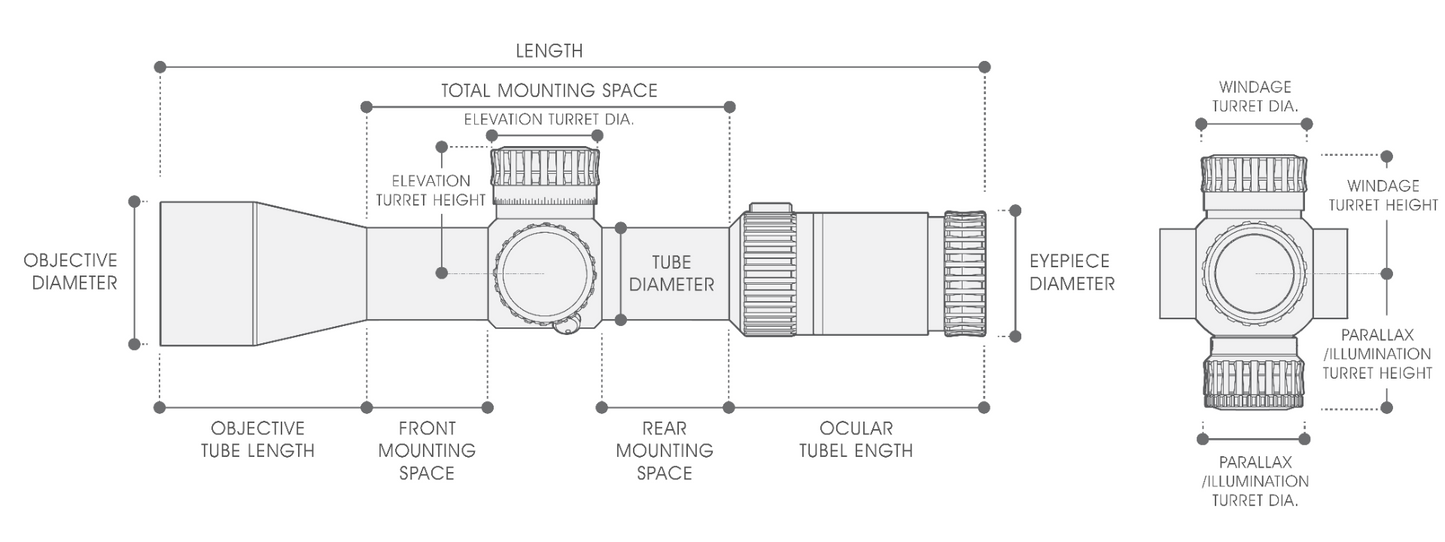

| Elevation Turret Diameter | 1.65 in (42 mm) |
|---|---|
| Elevation Turret Height | 1.92 in (49 mm) |
| Eyepiece Diameter | 1.81 in (46 mm) |
| Front Mounting Space | 1.97 in (50 mm) |
| Length | 14.13 in (359 mm) |
| Objective Diameter | 2.56 in (65 mm) |
| Objective Lens Diameter | 56 mm |
| Objective Tube Length | 4.96 in (126 mm) |
| Ocular Tube Length | 3.46 in (88 mm) |
| Parallax/Illumination Turret Diameter | 1.50 in (38 mm) |
| Parallax/Illumination Turret Height | 2.05 in (52 mm) |
| Rear Mounting Space | 1.97 in (50 mm) |
| Total Mounting Space | 5.71 in (145 mm) |
| Tube Diameter | 34 mm |
| Windage Turret Diameter | 1.65 in (42 mm) |
| Windage Turret Height |
1.88 in (48 mm) |

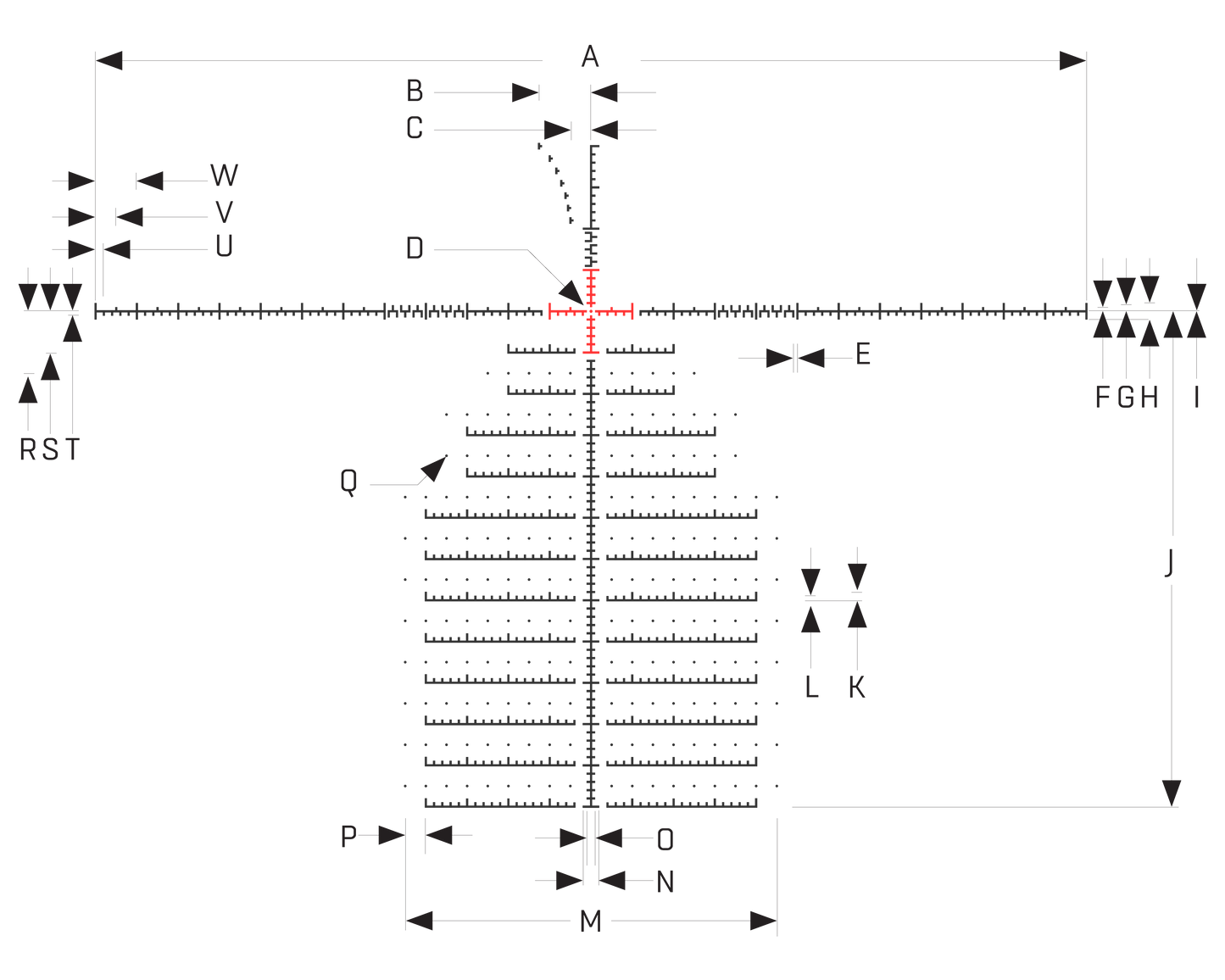

RECTICLE BREAKDOWN
| UNIT | A | D | E | F | G | H | I |
| MIL | 24 | 0.05 | 0.1 | 0.1 | 0.15 | 0.4 | 0.03 |
| UNIT | J | K | L | M | N | O | P |
| MIL | 12 | 0.2 | 0.1 | 9 | 0.4 | 0.2 | 0.5 |
| UNIT | Q | R | S | T | U | V | W |
| MIL | 0.05 | 1.5 | 1 | 0.1 | 0.2 | 0.5 | 1 |
| UNIT | B |
| INCH @ 400 YARDS | 18 |
| UNIT | C |
| INCH @ 1000 YARDS | 18 |
