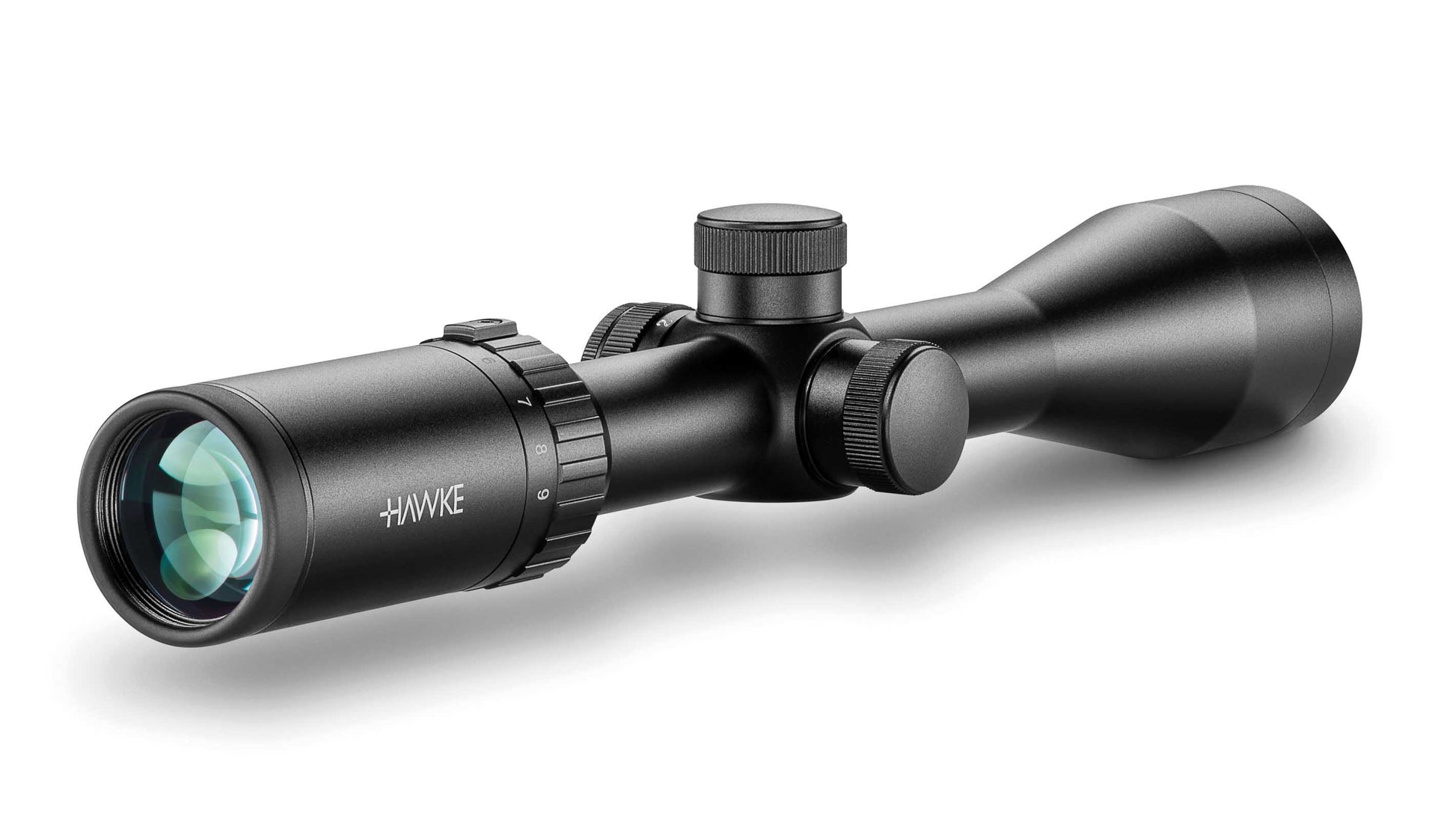

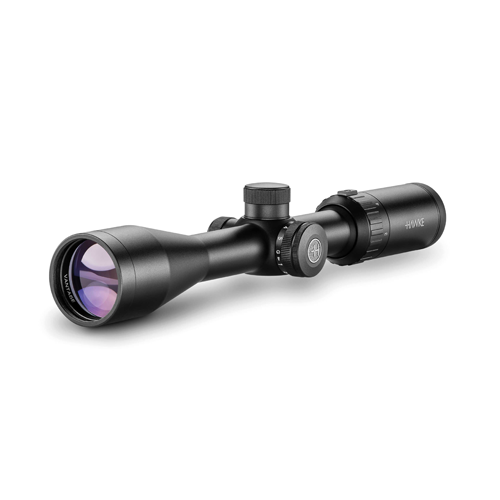

Hawke Vantage 3-9x40 Ir L4a Dot

Hawke Vantage 3-9x40 Ir L4a Dot

SHAWKE14218

R 3,495.00 ZAR
R 3,495.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.
: : :
:
:
:

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

L4A Dot Reticle (2.5 MOA)

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.

Objective Lens
40mm
Reticle
L4A Dot (2.5 MOA)
Illumination
5 Levels (Red & Green)
Illumination Control
Stepped Rheostat
Parallax
Fixed
Magnification
3 - 9x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
1 Inch

Field of View
39 - 12.7ft @100yds
13 - 4.2m @100m
Field of View (°)
7.4 - 2.4
Eye Relief
3.5in
90mm
PX/Focus
100yds
91m
Exit Pupil
0.52 - 0.17″
13.3 - 4.4mm
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
100 MOA
Windage Turret Clicks (max)
100 MOA

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers

Length
12.4in
315mm
Weight
15.2oz
430g

Turret Type (Elevation)
Capped. Low-Profile. Resettable

Turret Type (Windage)
Capped. Low-Profile. Resettable
