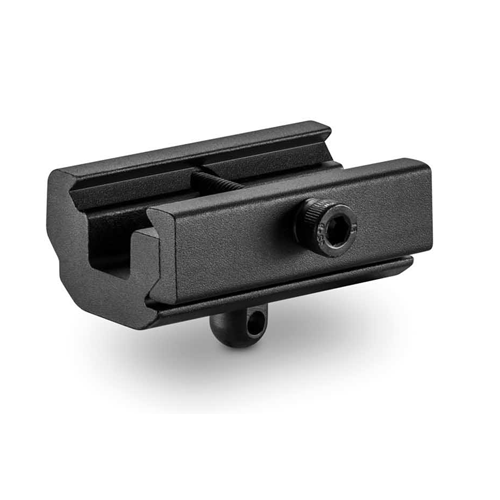

Hawke Bipod Adapter Weaver To Stud

ATTACHING THE BIPOD
Your rifle must have a swivel stud attached to the forearm of the stock.
Unscrew the tightening screw to allow the stud clamps enough movement
to fit through the square hole and over the swivel stud. When the clamp is
in position, tighten the screw. Ensure the bipod is straight prior to finally
tightening the bipod clamp securely on your rifle. Slings can then be attached
directly to the bipod using a sling swivel.

EXTENDING THE LEGS
The bipod legs can be adjusted to suit different shooting positions; they are
spring loaded to assist in opening. Each leg is also notched for specific heights.
To extend the legs, simply press the release button. To retract the legs, press
and hold the release button while pushing the legs back.

TILT
The bipod can be levelled for use on uneven ground. Simply loosen the lever
and adjust until the rifle is level. To lock back into position, tighten the lever.

SUPPLIED LEVER
The lever can be moved to the desired position using the ratchet feature.
Simply pull the lever away from the bipod and rotate into desired position.

SWIVEL
Rotation from left-to-right allows tracking of moving targets.

BARREL MOUNTED MODELS
ATTACHING THE BIPOD
The barrel mounted bipod is ideally suited for spring airguns and rifles where
a swivel stud is not possible. It can attach to barrels from 12mm – 18mm
diameter. To attach, press the release button to open the latch. Position the
bipod on your rifle barrel and close the latch. When in the desired position,
tighten the screw using the wheel.
