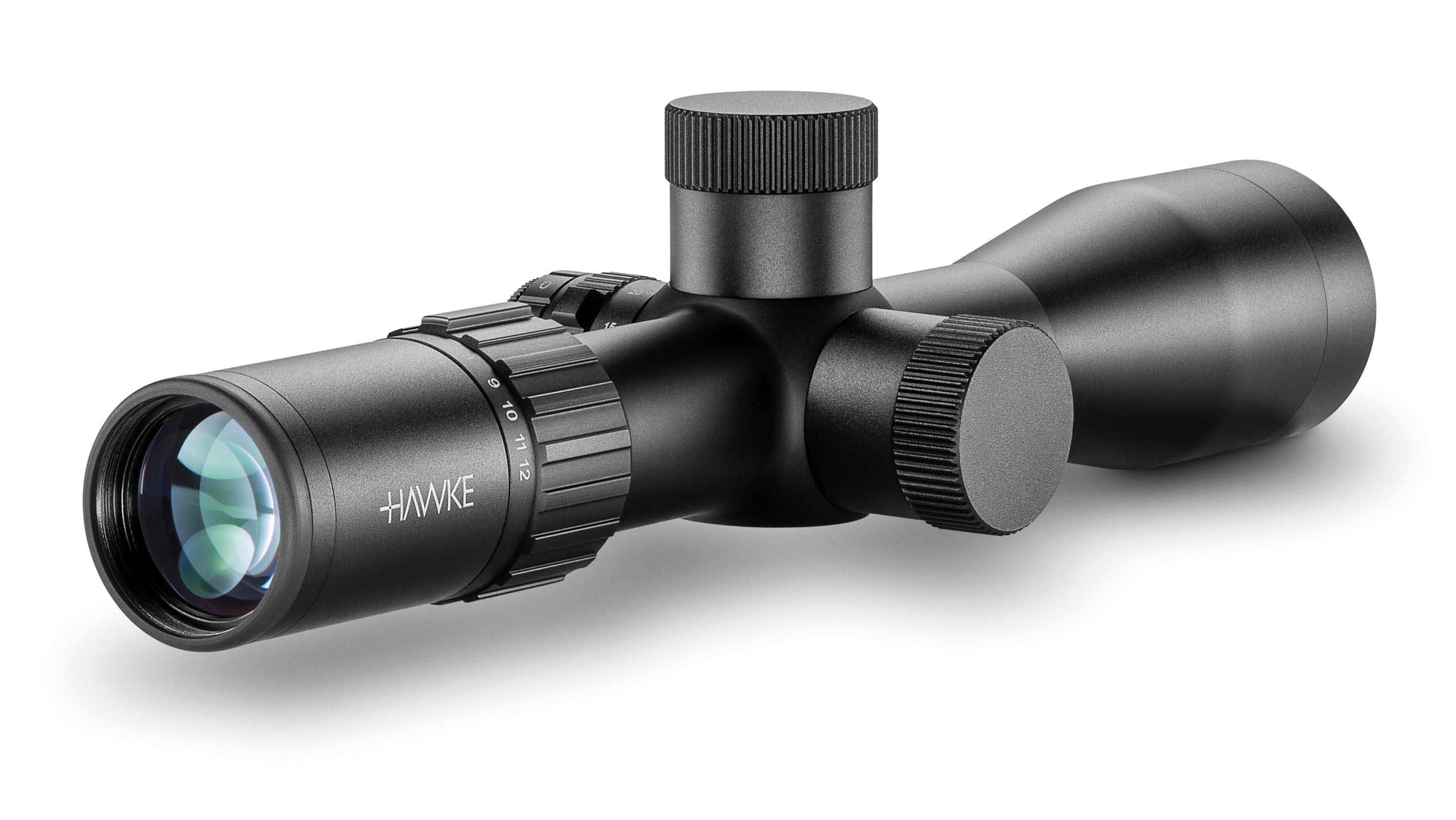

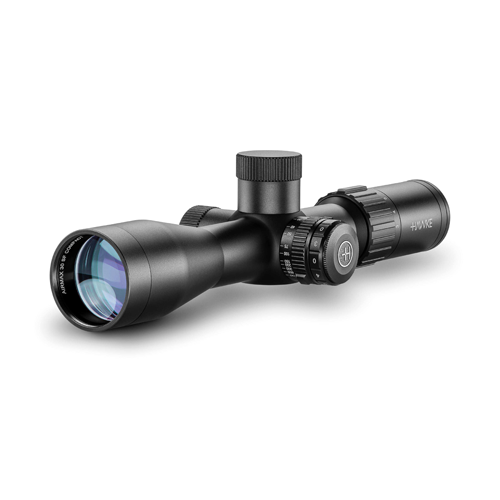

Hawke Airmax 30 Com 3-12×40 Amx Ir (Spo)

Hawke Airmax 30 Com 3-12×40 Amx Ir (Spo)

SHAWKE13200

R 7,495.00 ZAR
R 7,495.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.
: : :
:
:
:

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Objective Lens
40mm
Reticle
AMX IR
Illumination
6 Levels (Red)
Illumination Control
Stepped Rheostat with Off Positions In-between
Parallax
Side Focus
Magnification
3 - 12x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm

Field of View
43.7 - 10.9ft @100yds
14.6 - 3.6m @100m
Field of View (°)
8.3 - 2.1
Eye Relief
3in
76mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.52 - 0.13″
13.3 - 3.3mm
Click Value
1⁄ 10MRAD
Elevation Turret Clicks (max)
30 MRAD
Windage Turret Clicks (max)
30 MRAD

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 16 Layers

Length
10.9in
277mm
Weight
20.8oz
589g

Turret Type (Elevation)
Target. Capped. Resettable

Turret Type (Windage)
Target. Capped. Resettable
