Hawke Airmax 6-24x50 Sf (Amx Ir) Compact

Hawke Airmax 6-24x50 Sf (Amx Ir) Compact

SKU:SHAWKE13220

Regular price R 7,750.00 ZAR
Regular price Sale price R 7,750.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

DESCRIPTION

The Hawke Airmax 30 SF Compact 6-24x50 Scope - AMX IR Reticle is a wide angle optical system ideal for varmint/airgun use. It features a lightweight and compact construction with a short eye relief, 16 layer fully multi-coated optics for exceptional clarity, Side focus control for parallax adjustment to infinity and a Glass etched reticle with red illumination.

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.



FEATURES

  • Wide Angle optical system ideal for varmint/airgun
  • Lightweight and compact construction – short eye relief
  • 16 layer fully multi-coated optics for exceptional clarity
  • Side focus control for parallax adjustment to infinity
  • 30mm mono-tube chassis for superior strength
  • Glass etched reticle with red illumination
  • 6 levels of brightness with off positions in-between
  • 1/10 MRAD capped, resettable target turrets
  • Fast focus eyebell and high torque zoom ring
  • Waterproof, Shockproof, Nitrogen purged
  • All calibre rated



SPECIFICATIONS

Chassis
30mm Mono-tube
Optical System
6-24×
Objective
50mm
Reticle
AMX IR
Illumination
Red - 6 Levels
Focus/Parallax
Side Focus - 9m / 10yds to Infinity
Field of View: m @100m / ft @100yds
7.3-1.8m / 21.9-5.5ft
Eye Relief
76mm / 3″

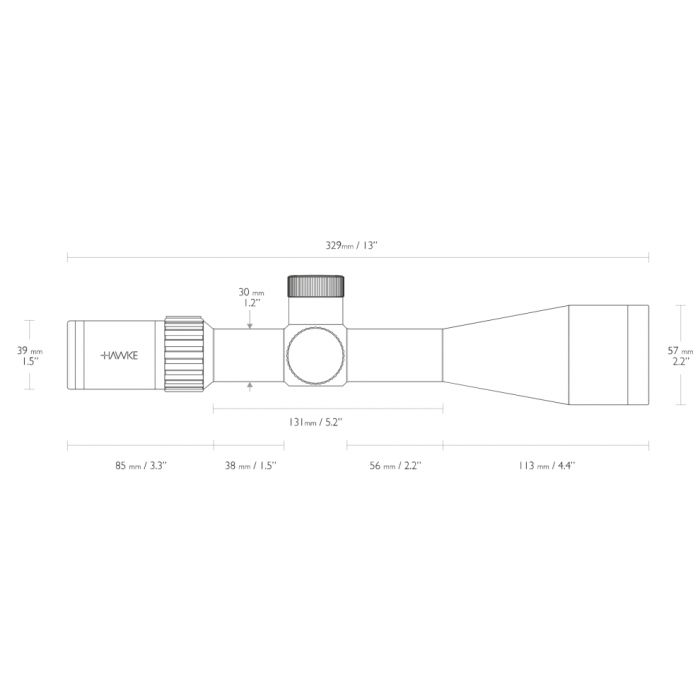

Length
329mm / 13″
Weight
670g / 23.6oz
Material
Aluminium
Exit Pupil
8.3-2.1mm / 0.33-0.08″
Ocular Type
Fast Focus
Lens Coating
Fully Multi-Coated - 16 Layers
Power Selector Style
Rubber Coated Posi-Grip
Focal Plane
Second Focal Plane (SFP)
Elevation Increment
1⁄10 MRAD
Elevation Adjustment Range
16 MRAD
Windage Increment
1⁄10 MRAD
Windage Adjustment Range
16 MRAD
Turret Caps
YES
Turret Type
Capped Target Turrets
